| Place of origin: | China |
| MOQ: | 1 roll |
| Production capacity : | 10tons/Month |
| Delivery time: | 3-5 days generally after getting your PO |
| Package: Carton. | coil per roll and then put in the carton |
| Certificate: | Industry Standard, ISO9001 |
| Material:P | PTFE, Graphite, Aramid, Carbon Fiber, Acrylic Fiber, Ramie Fiber, Kynol Fiber, and so on |
| feature: | fluid sealing material for Pump&Valve |
| Usage: | suitable solutions to increase the reliability of rotating &Reciprocating equipment and valve |
Braided packaging is a kind of material like rope, which is cut into loops and wound around rods. When the gland is tightened, radial pressure is generated as a result of the compression force. Since braided packing expands radially when compressed, the gland tolerance is more flexible than when using v-shaped packing. braided packing is also called compressed packing, gland packing, and rope packing.
It is usually produced in a square or rectangular section and is available in various materials. As a compression or rope packing, gland braided packing is a highly multipurpose sealing solution for pumps, valves, agitators, and other rotary equipment
Longseal gland braided packaging includes almost all sealing packing types. We provide regular products, and can also provide OEM braided packings according to customer needs. From raw materials to finished products, we strictly control every aspect of production. Provide reliable gland braided packing. For a quote, please contact one of our sealing professionals.

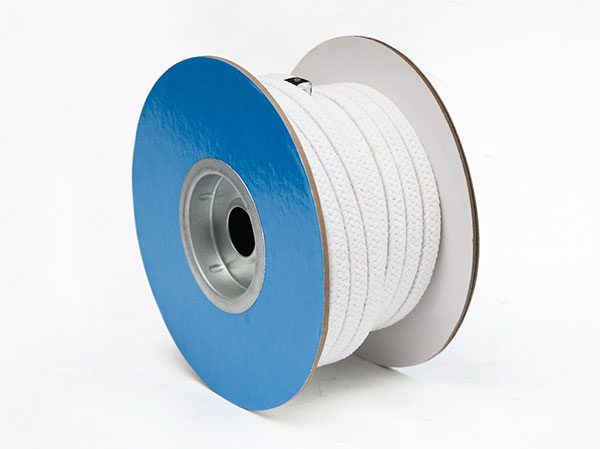

Acrylic PTFE Packing is braided from high strength acrylic synthetic yarns with PTFE impregnated twice. The Acrylic PTFE packing has excellent properties of tightness, lubricity, and good resistance to chemicals. Wide variety of uses throughout a plant. Used in pumps and valves, it can handle most chemicals except strong acid, strong alkali, and a strong oxidizer. Especially for the condition of middle temperature, high pressure, high speed, and where contamination is not permitted.

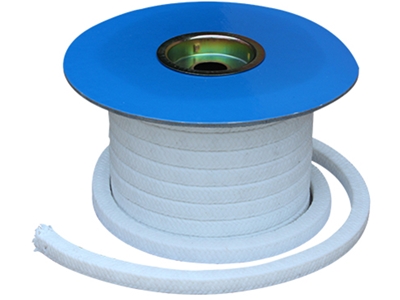

Aramid PTFE Packing braided from high-quality Dupont Aramid /Kevlar yarns which are uniformly impregnated with PTFE dispersion. The packing shows good chemical resistance, high elasticity, and very low cold flow. It is wear-resistant but may damage the shaft if not used properly.
The aramid fibre can be braided in many types for different applications, such as Aramid PTFE Packing with lubricant for a slurry service application, Spun aramid fibre packing with economical use; PTFE packing with Aramid corner, Graphite PTFE Packing with Aramid Corner, GPTFE & Aramid in Zebra braided packing, etc.

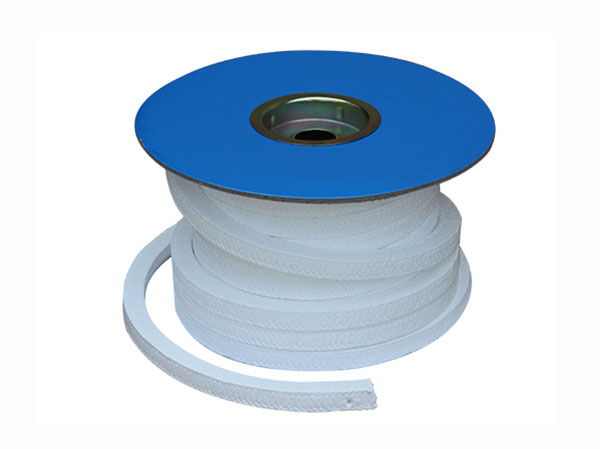

Pure PTFE Packing is a pure PTFE fibre yarn braided into the square cross-section and impregnated with PTFE dispersion. High cross-sectional density and structural strength. It is designed for valves and lower shaft speed application under medial pressure in food processing, pharmaceuticals, paper mills, fibre plants where high purity and corrosion resistance is required. PTFE packing can be also treated with lubrication, it is an economic type.

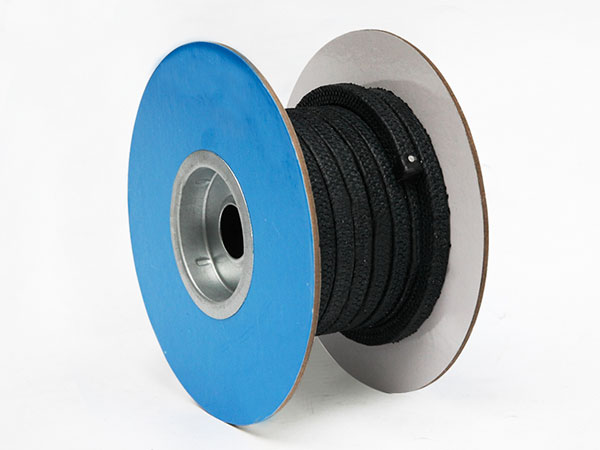

Carbonized fibre packing is braided from oxidized PAN fibre impregnated with PTFE, silicon-oil-free. Compared with traditional carbonized fibre packing, it is not brittle and is suitable for high peripheral speed applications.
With the high strength and good thermal conductivity of the PAN fibre, and excellent self-lubrication of the PTFE, the packing has a long life and does not damage shafts. The related carbon fibre packing for a different purpose is available, such as Carbonized fibre packing with graphite, Carbonized Fiber Packing Reinforced with Nickel wire, Carbon fibre packing.

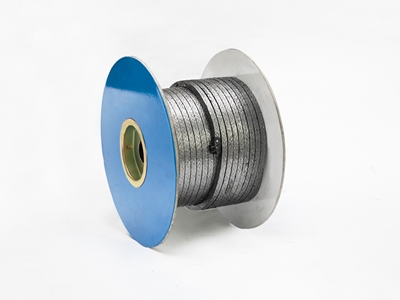

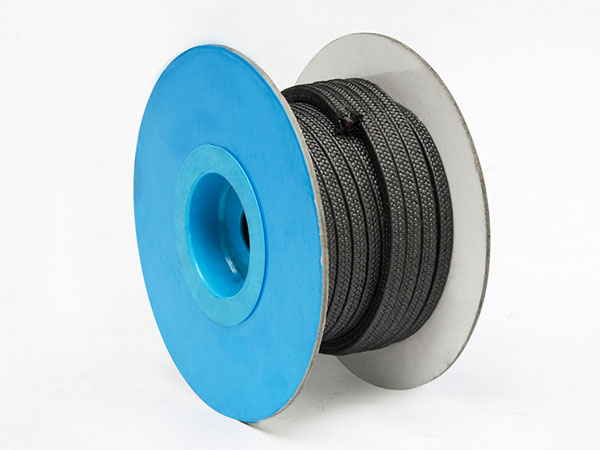

Graphite packing is braided from low-sulfur expanded graphite yarns, which are reinforced by cotton, carbon fibre, glass fibre, etc. It has very low friction, does not damage shafts or stems. It shows good thermal and chemical resistance and high elasticity. To improve mechanical strength, Graphite packing can be reinforced with Inconel wire, ss wire, nickel wire, etc metal materials.

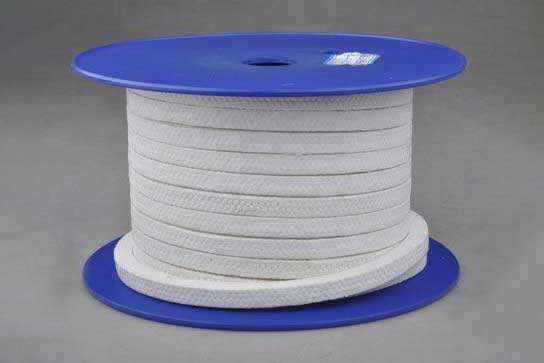

Pure PTFE Packing with oil is an economical and practical sealing material that is widely used for sealing valves, pumps, mixers, and other equipment. It is compatible with most media and is an ideal choice for industries such as chemical, petroleum, food, and pharmaceuticals

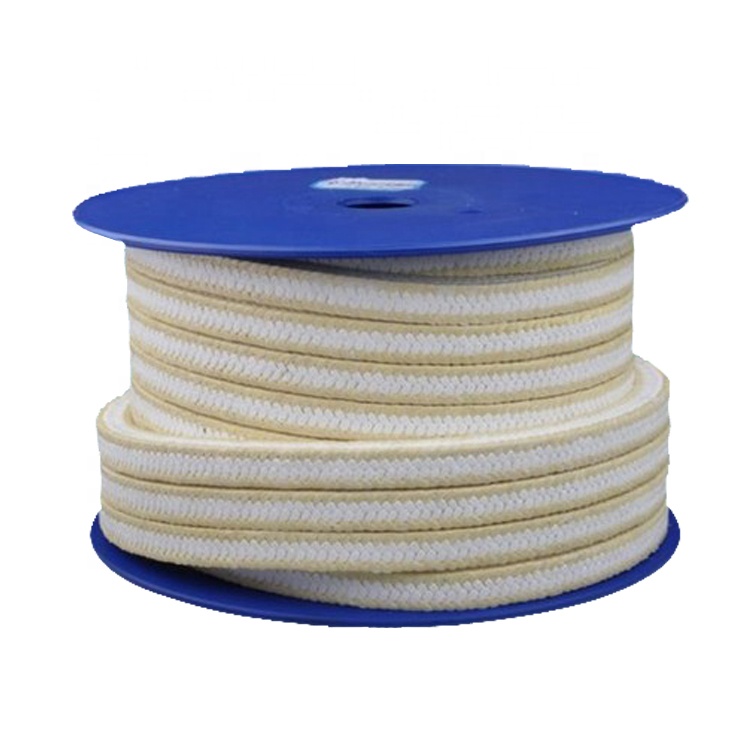

PTFE Packing with Aramid Corner is made of aramid yarns impregnated with PTFE, while the friction faces are made of pure PTFE yarns. This structure enhances the lubrication ability of aramid fiber and improves the strength of the pure PTFE. This unique multi-wire braiding technology enhances both lubricity and tensile strength, significantly extending service life in demanding applications.

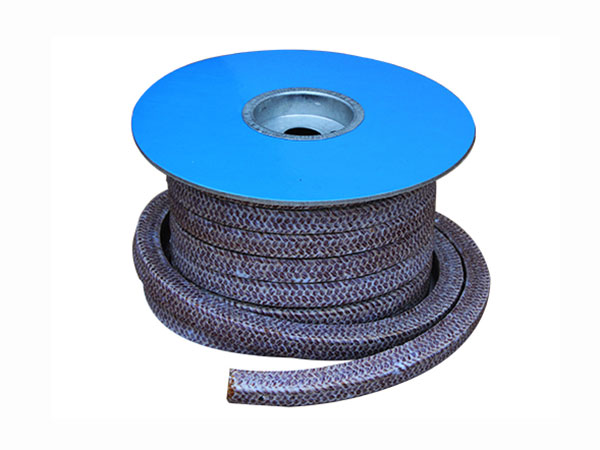

Graphite PTFE (gPTFE) braided packing, also known as Black PTFE Packing, is a high-performance sealing material made from braided PTFE yarn uniformly embedded with graphite particles. the Graphite PTFE packing can be widely used in most chemical pump applications, except for molten alkali metals, fluoride solutions, fuming nitric acid, and other strong oxidizing agents
Kynol Fiber Packing Braided (GOLDEN Packing) is made with high-performance Kynol fibers, ensuring durability and reliability. The special process assures thorough lubrication for a longer Packing life. Its unique design and material combination ensure outstanding performance in high-temperature, high-pressure, and chemically corrosive environments, making it an ideal choice for pump and valve sealing.
Kynol Fiber Packing Braided (GOLDEN Packing) is made with high-performance Kynol fibers, ensuring durability and reliability. The special process assures thorough lubrication for a longer Packing life. Its unique design and material combination ensure outstanding performance in high-temperature, high-pressure, and chemically corrosive environments, making it an ideal choice for pump and valve sealing.
